Round and segmental arches

Anyone can do it right now.

We fulfill architects' wishes at the highest level. We can produce virtually any possible variation of segmental and arched boxes for your facade design.

In our production facility, we manufacture round and segmental arch boxes for roller shutters, Venetian blinds, and zip shading systems, and always with the highest values for heat and sound insulation.

We will advise you on shading and many other options, such as additional window fixings or motorization.

Our segment and arched boxes are also available with a ventilation system.

AKTIV-SYSTEM - Your specialist for innovative and high-quality roller shutter boxes in round or segmental arch design.

Thanks to the excellent thermal and sound insulation values of our products compared to conventional roller shutter box suppliers, you also receive our round and segmental arch boxes for KfW 40 NH and QNG-Plus - highly thermal and sound insulating.

More information >>>

Segmental arch

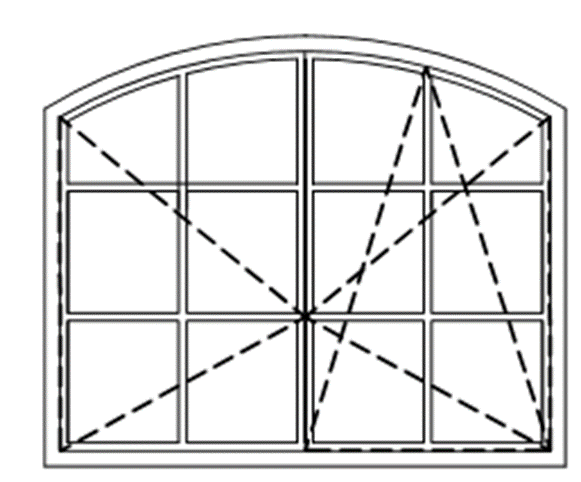

Segmentbogen Rollladenkasten AKTIV-SYSTEM

Arched top with side window

Rundbogen mit Seitenfenster AKTIV-SYSTEM

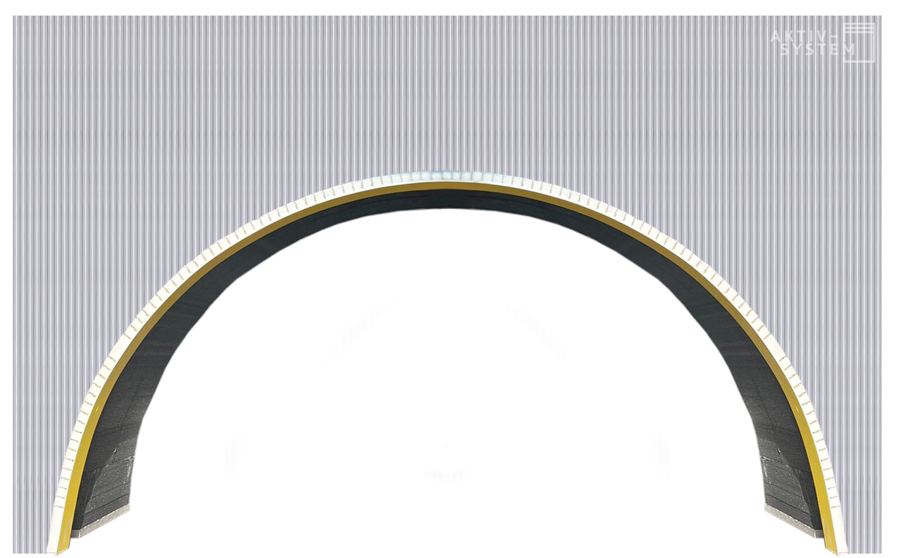

semi-circular arch

arched box

Arched box with a 500 mm high arch - with a rough width of 1000 mm

Rundbogenkasten mit Seitenfenster AKTIV-SYSTEM

Arched box - Gothic style

Special design arched box with side elements - arched opening 500 mm with a rough opening dimension of 1000 mm with 400 mm side elements

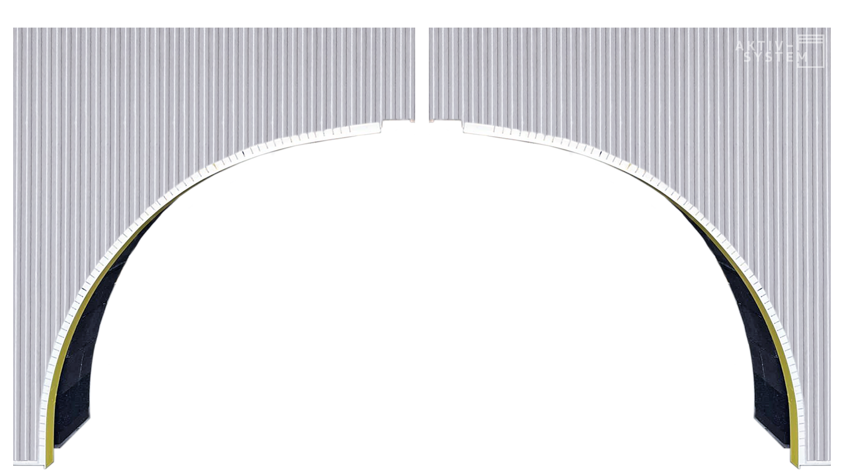

semi-circular arched box

Semi-circular arched box - arched opening 1000 mm with a rough construction width of 1000 mm - Semi-circular arched boxes on the left and right in duet in the facade thus create a harmonious image.

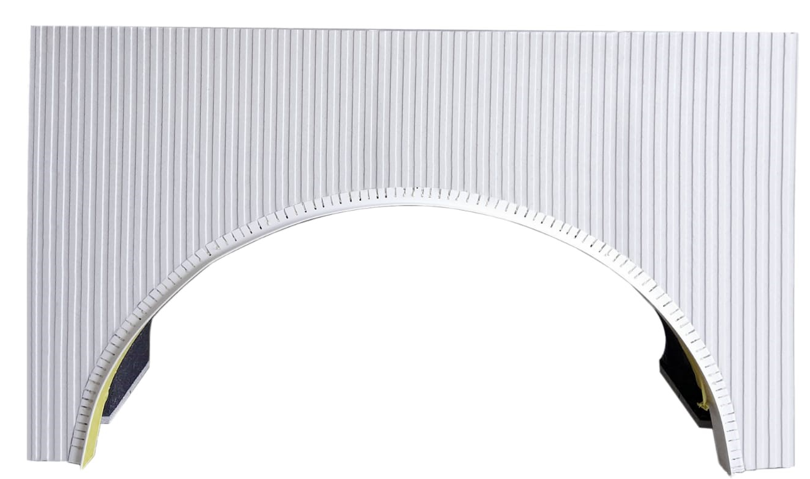

Segmentbogenkasten

Segmented arch box with an arch pitch of 500 mm and a rough width of 1200 mm

Segmented arch box, long version

Segmented arch box with an arch pitch of 500 mm and a rough width of 2000 mm

Vorher Nachher

Facade with round arches

The high-quality exterior facade with columns and jamb stones, paired with the arched windows as a highlightt.

With our shading solutions and matching roller shutter boxes, we were able to contribute to making the exterior facade of this city villa in Munich modern and probably unique.

Round arch segmental arch dimensions and information

For monolithic construction and facades with external thermal insulation composite systems.

Roller shutter box as a segment or round arch box
External revision 80 mm - monolithic - from wall thickness 300 mm – 490 mm
Roller shutter box as a segment or round arch box
External access panel 80 mm- with ETICS - from wall thickness 175 KS mm

Venetian blind box as a segment or round arch box
External access panel 124 - 140 mm - monolithic - from wall thickness 300 mm – 490 mm
Venetian blind box as a segment or round arch box
External access panel 124 - 140 mm - with ETICS - from wall thickness 175 mm

Bow stitching in all variations, with further solutions.

Bow stitch from 200 - 700 mm
The arched stitch is an important dimensional specification for the shape of the round arch box.
Skewing of the boxes on opening sashes / bevel cut
To prevent the window from colliding with the inside corner when opened, we create a slant.
If the window in the arched area cannot be opened, we do not need any slant.
Inspection opening - access to the shading system from the inside
We check access to the shading mechanism on all boxes. If the radius does not allow access to the motor or bearing mount inside the box, we produce a narrow inspection cover.
Custom sizes
Segmented arch boxes from 2,500 mm up to a maximum of 4,000 mm are possible.

basket-arch box

Basket arches with different radii - for roller shutters, Venetian blinds or ZIP.

Korbbogen - Rollladenkasten AKTIV-SYSTEM

basket arch roller shutter box

For special facade designs, we also offer our system in Basket arch variantn for roller shutters, Venetian blinds or vertical awnings (ZIP textile screen).

Also as Seat window variant with double brickwork. Example: 36 30 cm brickwork.

The basket arch shown here is an MS 66.5 version - average rise height 700 mm for a rough opening dimension of 2510 mm for ZIP shading.

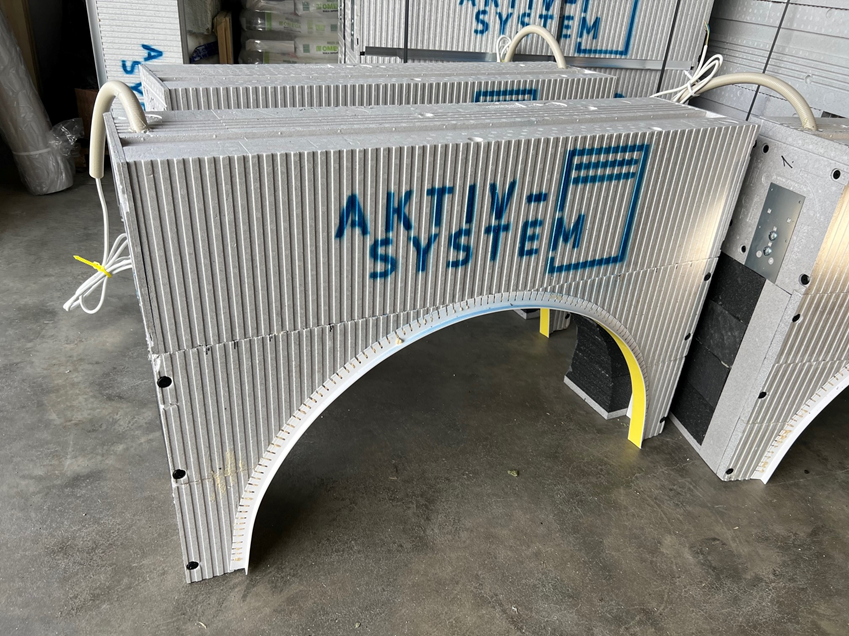

Arched box prepared with motor

Our segmented or arched roller shutter boxes can also be prepared with our motor drives for roller shutter curtains.

This saves on expensive assembly costs during construction.

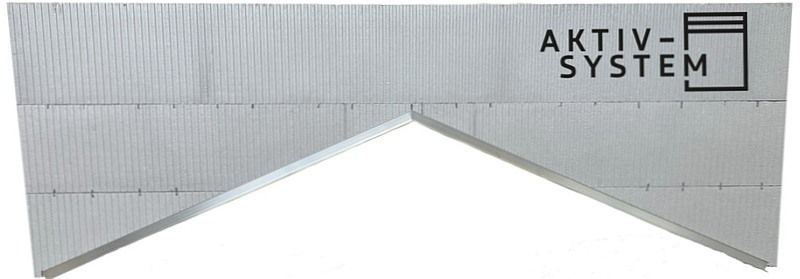

Schrägbogen - Spitzbogen - Rollladenkasten AKTIV-SYSTEM

pointed arch roller shutter box

For the gable end with shading, we can also offer our roller shutter boxes in the pointed arch / slanted arch box design.

Arched boxes are available from us in every shape and design.

In our roller shutter box special and custom construction production, we meet your requirements with precision.

Runbogen-Kasten mit Ziegel-Optik AKTIV-SYSTEM

Segmented arch roller shutter box with brick look

Our segmented or arched roller shutter boxes are also available in brick red.

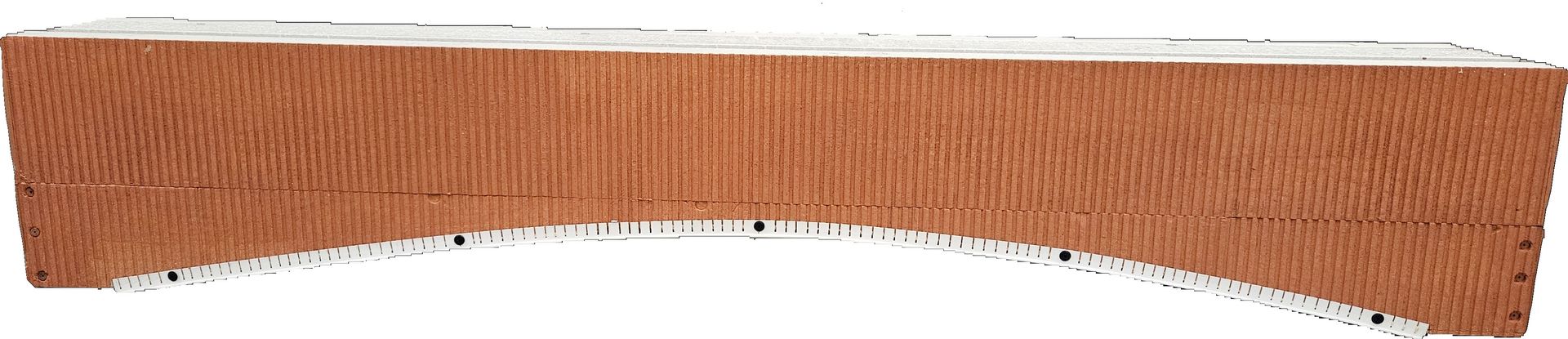

Runbogen-Kasten Raffstore mit Ziegel-Optik und AKTIV-SYSTEM

Segmental arched roller shutter box with brick look

Our segmented or arched venetian blind boxes are also available in brick red.

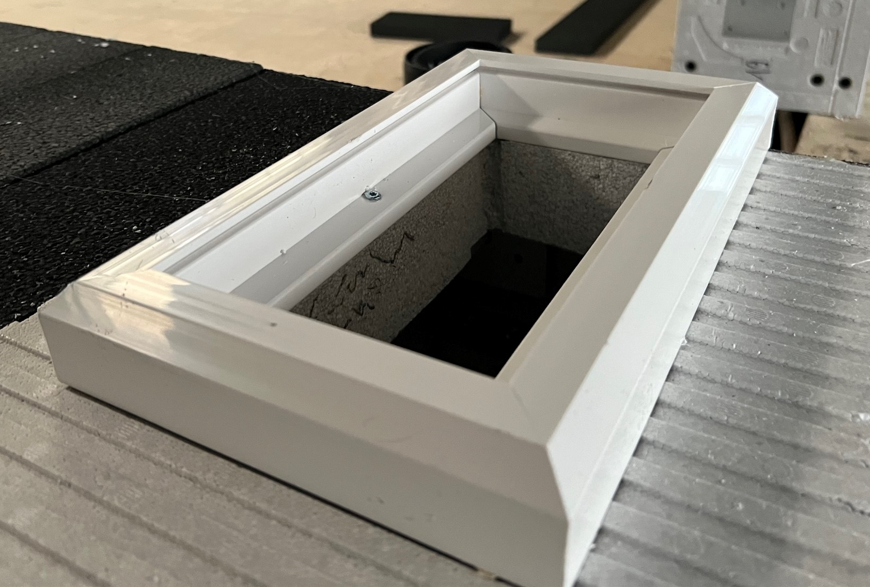

Internal audit access

To ensure access to the motor, shaft, and shaft mounting, we produce small inspection covers. These are only necessary if external access is prevented by a large radius or arc.

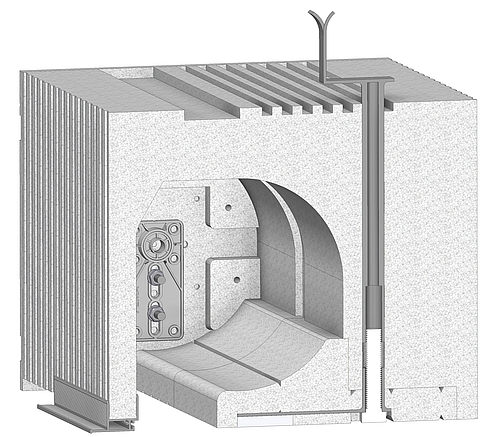

Befestigungskonsole Rollladenkasten AKTIV-SYSTEM

Mounting bracket

Our round arch and segmental arch boxes can also be supplied with a bracket for additional window mounting.

Befestigungskonsole Raffstorekasten AKTIV-SYSTEM

Rundbogen-Kasten mit Lüfter AKTIV-SYSTEM

Arched box with fan

With our fans featuring heat recovery or bathroom exhaust fans, we offer you the solution for implementing the facade without an external hood.

The intake and exhaust air is routed via the ventilation deflection over the front apron of the roller shutter or Venetian blind box.

Our "roller shutter box without external hood" ventilation solutions are also available for all our segment and round arch boxes, as well as semi-circular and pointed arch boxes.

EPD for QNG and QNG-PLUS also for

Round arch and segmental arch

We meet the requirements for sustainability certification, taking into account the EPD for roller shutter box / System Grupor - Environmental Product Declarations for construction products.

With our system we fulfill QNG and QNG-PLUS for residential buildings and help you meet the funding requirements.

EPD for ORIGINAL-GRUPOR-SYSTEM ®

geprüftes und zugelassenes Rollladenkasten System
