Decentralized ventilation for new construction and renovation
Heat recovery and exhaust air systems without an external hood
You want to protect your building structure, you want to avoid mold and ensure permanent ventilation of your property - And all of this in a simple, efficient and cost-effective way?
Then you've come to the right place. ACTIVE SYSTEM precisely !
We ensure a healthy indoor climate with our innovative ventilation solutions, which are installed in the masonry or insulation layer from the outside. invisibly integrated are - without long and complicated piping, without cumbersome drilling and without external hood installations - simple and inexpensive.
With our Roller shutter and Venetian blind box system with ventilation without external hood We ensure perfect and efficient decentralized fan integration for your construction project.
Through the cooperation of ACTIVE SYSTEM with our partner AERECO (part of the Aldes Group, (global specialist for ventilation and residential comfort solutions) Benefit from decades of experience.
airROLLO
The fan is intelligently adapted to our roller shutter boxes and boasts top performance figures such as up to... 60 m³ volume flow per hour, high Soundproofing as well as very low power consumption.
Thanks to the innovative design, the roller shutter box remains suitable for all shading heights.
Invisible from the outside and with stylish interior panels - decentralized residential ventilation is that easy.
Roller shutter box airROLLO or airRAFF
The Residential ventilation can be easily integrated into our roller shutter box system. as in our Venetian blind boxes We integrate them, and that applies to all formats of our system. Textile screen/ZIP shading systems with fans are also possible.
Whether your shading system uses an electric drive, belt, or crank drive - jWe can also fulfill any drive requirement on the fan side..
airRAFF
The fan is intelligently adapted to our external venetian blind boxes and boasts top performance figures such as up to... 60 m³ volume flow per hour, high Soundproofing as well as very low power consumption.
The shaft height for your shading system is 270 mm and is therefore suitable for all shading heights.
Our 140 mm inspection opening provides space for insect screens between the window and your external venetian blind system.
The features of our AERECO LAD ventilation system for roller shutter and Venetian blind boxes at a glance:
- Available in two fan variants:
plug-in module LAD - PP (up to 45 m³/h)
and LAD - EPP (up to 60 m³/h)- Heat recovery rate up to 83%
- fans with
3-step program
and an additional
Turbo Boost Mode
(Time period adjustable)
- Specific energy consumption class (average climate)
A+
- "Bedroom-suitable" with
SLEEP function(Time period adjustable)
- Relative humidity adjustable with multisensor
- Bypass /
Summer ventilation
possible
- Modern wall switch with
intuitive handling
as well as an indicator for filter change cleaning.
- Easy installation
- Inexpensive replacement filters
- Fan without outer cover for
any wall thickness
e.g. from 175 mm calcium silicate brick or 160 mm concrete walls
- For each
Brickwork from 300 mm to 485 mm
- Also for
Renovations using ETICS systems up to 700 mm total wall thickness
- For
Timber frame construction
suitable
- With
Exhaust fan (e.g. for kitchen or bathroom) available
- Fulfilled
Energy efficiency requirements independent testing institutes
- Can be combined with our
RC 2 roller shutter or venetian blind box system
- As a roller shutter box with
Internal revision available
- In connection with our
Top-mounted box system possible
- Expert assessment event with comprehensive test reports.
- Expert assessment event with comprehensive test reports.
- In connection with our
Top-mounted box system possible
- As a roller shutter box with
Internal revision available
- Can be combined with our
RC 2 roller shutter or venetian blind box system
- Fulfilled
Energy efficiency requirements independent testing institutes
- With
Exhaust fan (e.g. for kitchen or bathroom) available
- For
Timber frame construction
suitable
- Also for
Renovations using ETICS systems up to 700 mm total wall thickness
- For each
Brickwork from 300 mm to 485 mm
- Fan without outer cover for
any wall thickness
e.g. from 175 mm calcium silicate brick or 160 mm concrete walls
- Inexpensive replacement filters
- Easy installation
- Modern wall switch with
intuitive handling
as well as an indicator for filter change cleaning.
- Bypass /
Summer ventilation
possible
- Relative humidity adjustable with multisensor
- "Bedroom-suitable" with
SLEEP function(Time period adjustable)
- Specific energy consumption class (average climate)
A+
- fans with
3-step program
and an additional
Turbo Boost Mode
(Time period adjustable)
- Heat recovery rate up to 83%
Interior panels
We bring stylish design to your living space with our modern interior panels.
Our
slim version with a 230 mm wide/high and only 35 mm deep installation height, available in high-gloss finish and special colors are also possible on request.
You want it flush with the wall – we can do that too, and offer you the perfect solution with our FLAT version in white. It is attached to the subframe magnetically.
Our airROLLO system It is therefore almost invisible from the outside and also from the inside - and your property is optimally ventilated.
The functionality of decentralized fans with
airROLLO or
airRAFF
The use of the in e.g. airROLLO installed LAD fans from AERECO This always happens in pairs. See attached graphic on the left.
One ventilation unit draws fresh outside air into the interior, while the other transports stale, warm room air to the outside via a heat exchanger. Energy is transferred to this heat exchanger.
After 70 seconds, the direction of movement changes in the two LAD ventilation units and the previously heated heat exchanger releases its heat energy to the fresh air flowing inwards.
This principle works so well that 83% of the heat is recovered in the reference volume flow.

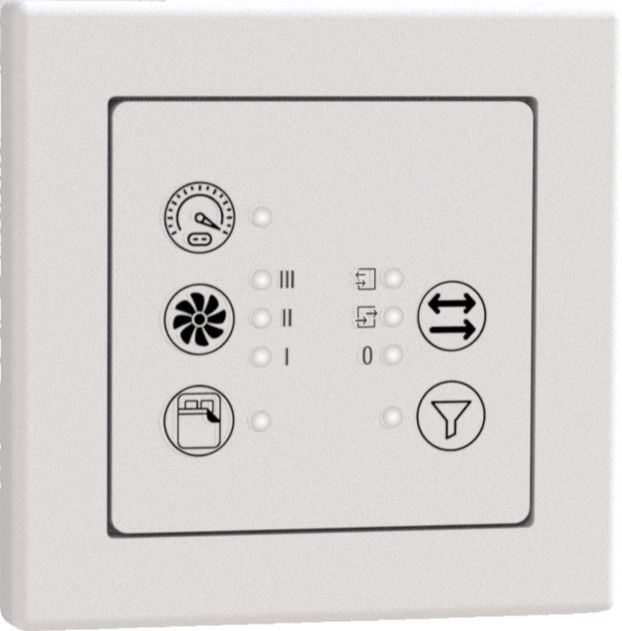

Clear and understandable
The to airROLLO compatible LAD-Advanced control Its clear design allows for intuitive handling.
With a simple press of a button, the different ventilation settings can be easily adjusted to individual needs.
Whether intensive ventilation, night setback or summer ventilation, everything is easily adjustable.
airROLLO and airRAFFAvailable in all roller shutter box formats
Our monolithic construction method airROLLO ventilation system for all wall systems available.
They have a Renovation with fan And you have an existing, for example, 48 cm brick wall that you would like to insulate further? We also offer our services for this. decentralized fan solution on the roller shutter or venetian blind box up to a Total thickness of up to 665 mm Other custom sizes are also possible.
Thanks to the compact design of our system, even
Box heights of 250 mm, 275 mm or 308 mm and other custom sizes are available.

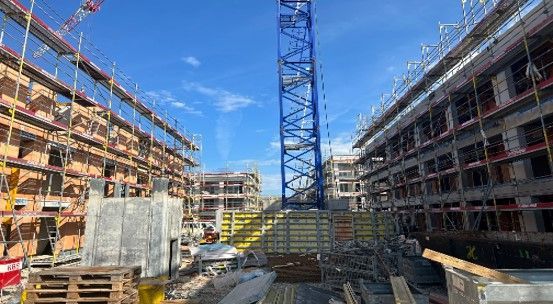

Impressions of the new building:airROLLO fan
Impressions of the renovation:airROLLO
airRAFF fan

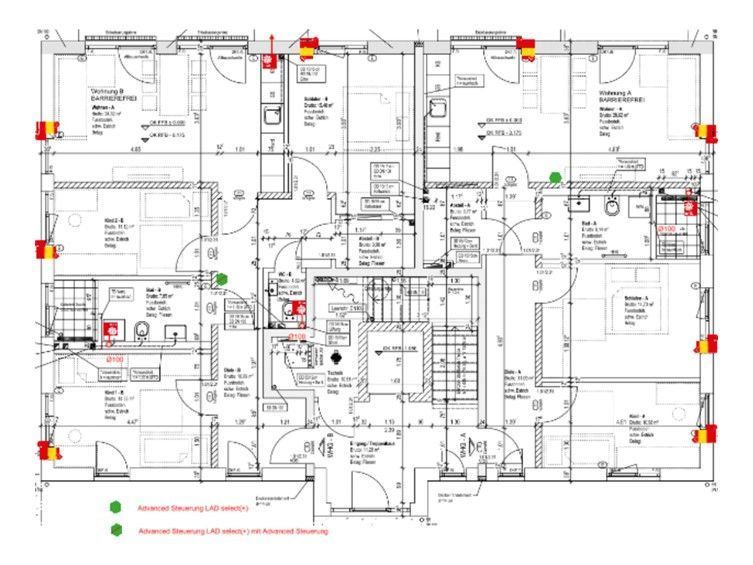

Your project – individually planned and perfectly implemented
Depending on the conditions or requirements of your construction project, there are different demands or energy objectives for controlled residential ventilation.
Our cooperation partner AERECO offers you a wide range of products for an efficient, demand-driven and cost-effective solution to.
Regardless of the product or system you require, we will create a technical calculation and send it to you. an attractive offer.
EPD for QNG and QNG-PLUS
We meet the requirements for sustainability certification, taking into account the EPD for roller shutter box / System Grupor - Environmental Product Declarations for construction products.
With our system you can reach QNG and QNG-PLUS for residential buildings, and secure your funding according to the GEG.
EPD for ORIGINAL-GRUPOR-SYSTEM ®
We are specialists in large construction sites.
Due to our excellent thermal and sound insulation values as well as our high service level, we are partners of large housing companies and developers.
Test reports
You would like test reports of our system with airROLLO and airRAFF If you require it, please use the following: Link.
Instructions for installing our roller shutter boxes with ventilation
Electrical finishing work on our ventilation system may only be carried out by a qualified electrician. The work must be carried out by a qualified electrician.
The airROLLO - AERECO LAD ventilation systems are designed for 12V connection and can be used with They can be connected in a star configuration. A flush-mounted power supply or a DIN rail power supply is available for converting 220 volts to 12 volts.
Details can be found in our user manual.
Also available as a standalone solution:
Do you have no roller shutter boxes in your rooms, an attic with dormers, or no connection in the support for the fan box?
Here too, we have various wall and roof solutions available for you.
