reveal frame

The perfect system solution for your building envelope

Ideal thermal insulation, first-class sound absorption

In construction, the reveal refers to the vertical wall surface of openings in the masonry intended for the installation of windows and doors. The door sill or window sill represents the horizontal counterpart to the reveal. reveal frame A reveal frame is a structure attached to the building's opening, into which windows and doors are installed. The reveal frame significantly optimizes thermal and acoustic insulation properties and is therefore of central importance for the overall quality of the building envelope, especially in energy-efficient buildings.

Reveal frame from AKTIV-SYSTEM


Our reveal frame system encloses your windows with high thermal insulation and sound absorption, eliminating thermal bridges between the window and the masonry. How? AKTIV-SYSTEM reveal frames thermally separate the masonry from the window frame and sill, thus optimally insulating the window assembly. The isotherm profile is significantly improved, condensation on the window reveal is prevented, and the risk of mold growth at this critical point is minimized!

Energy efficiency is subsidized by the government.

AKTIV-SYSTEM offers window and door insulation reveals for passive houses and KfW efficiency houses - also for QNG and QNG plus projects.

With our reveal frame system you can benefit from funding much faster .

More living space thanks to reveal framesmen of ACTIVE SYSTEM

In wall constructions with thermal insulation, the window can be installed within the insulation layer using the AKTIV-SYSTEM reveal frame. This means that the surface area of the interior window sills is significantly increased. For French doors without a sill, this even expands the living space.

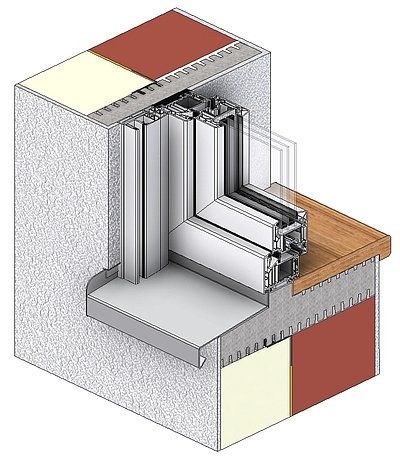

Laibungsrahmen Fenster in der Dämmung

Secure window installation even in highly insulated brick walls

Thermal insulation of building walls has become increasingly important in recent years. To meet rising demands, the thermal conductivity of brickwork has been significantly reduced. This was achieved by increasing the number and number of holes in the bricks, and reducing the thickness of the webs and the density of the brick fragments. By additionally filling the bricks with insulating material, thermal conductivities well below 0.10 W/(m K) could be achieved, thus improving the thermal properties of the walls. However, these measures also resulted in a reduction of the mechanical strength of the masonry – an undesirable side effect that considerably complicates the safe installation of windows.

The trend in modern construction is also moving towards larger glass surfaces. Due to current requirements for sound insulation and safety, insulating glass with laminated glass panes is increasingly being used. These are generally very heavy, which further complicates their installation in highly insulated brick walls due to their low strength.

AKTIV-SYSTEM offers innovative solutions

With our reveal frame system and our stable mounting profiles, which are integrated into the reveal frame without thermal bridges, secure window fastening can be achieved even in highly insulated brick walls.


Sichere Fensterbefestigung in Ziegelwänden mit AKTIV-SYSTEM Laibungsrahmen.

Advantages of window installation

The special design of the reveal frames offers several advantages when installing windows and window sills:

  • External thermal insulation composite systems can be connected earlier and more easily, even before the windows are installed.
  • The window, prepared sill and the inspection opening of the roller shutter or Venetian blind box from our system form a single unit.
  • The slope, seal and insulation are already in place, so the window sill can simply be installed on the outside.
  • Interior window sills can also be easily and thermally bridge-free mounted on the reveal frame.

From practice

Installation example of a reveal frame in a residential complex

The roller shutter box and base are designed as a system component, thus forming a perfect connection for the subsequent installation of the French doors.

With this system, deductions must be taken into account for the structural work.


Reveal frame for 100 percent more window sill

Installation example of a window

Interiors appear significantly larger with the AKTIV-SYSTEM reveal frames. For French doors, this even translates into a larger calculated living space.


Thermally insulated door connection

Our reveal frame system allows for ideal insulation of French doors and entrance doors in the floor and reveal area. Cold floor transitions are therefore a thing of the past with our system.

Reveal frames pay off

Highest insulation values for a residential complex

The following example shows a terraced housing estate with an apartment building using 36cm bricks and our system, consisting of Roller shutter box and reveal frame, significantly faster than the KfW 40 standard.


The client receives more funding and This will save energy costs in the future. due to the significantly improved building envelope.


FSuitable for all shading systems

Our reveal frames are equipped with all Shading systems compatible and can be used together with Roller shutter boxes as well as with Venetian blind or zip screen boxes or also used without shading become.

Features and benefits of the AKTIV-SYSTEM reveal frame


  • reviewed by FIW Munich and SWA Aachen
  • exceed the requirements of the new Building Energy Act
  • highly heat and sound insulating
  • Suitable for passive houses, efficiency houses 40, 40 Plus, 55, GEG - QNG and QNG plus
  • Maximum stability thanks to expanded polystyrene (EPS)
  • weather-resistant & frost-proof
  • flat support for exterior and interior window sills
  • Also ideal for formwork in the production of concrete parts that do not need to be removed afterwards.
  • Simplified window installation on thermally insulated bricks
  • more living space in double-shell masonry



Our reveal frame system can be installed with or without a roller shutter or Venetian blind box.


EPD for QNG and QNG-PLUS

Our reveal frame system also meets the requirements for sustainability certification, taking into account the EPD for roller shutter box / System Grupor - Environmental Product Declarations for construction products.
